FAG 6000-C-2Z bearings
FAG deep groove ball bearing, single row, Generation C, shields, steel sheet metal cage
- Measurement system
- Metric
- Bore diameter
- 10.000 mm
- Outside diameter
- 26.000 mm
- Width
- 8.000 mm
- Cr
- 5300 N
- C0r
- 1970 N
- Limiting speed
- 38000 r/min
- Net weight
- 0.018 kg
- Number of rows
- 1
- Sealing
- Non-contact Shield on both sides
- Cage
- Steel sheet metal
- Bore type
- Cylindrical
- Outer diameter type
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Class6 (P6)
- Internal clearance
- CN
- Lubricant in bearing
- Grease
- Relubrication feature
- None
In stock
Technical specification for FAG 6000-C-2Z
| Part Number | 6000-C-2HRS | FAG, GenerationC |
|---|---|---|
| Sealing | 2HRS | Contact seal on both sides |
| Cage | JN | steel sheet metal |
| Tolerance class | P6 | Class6 (P6) |
| Dimensional / heat stabilization | SN | Rings dimensional stabilized up to 120° |
| Lubricant | GA14 | ball bearing grease, low noise |
| Internal clearance | CN | Group N (CN) |
| Main Dimensions & Performance Data | ||
| d | 10 mm | Bore diameter |
| D | 26 mm | Outside diameter |
| B | 8 mm | Width |
| Cr | 5300 N | Basic dynamic load rating, radial |
| C0r | 1970 N | Basic static load rating, radial |
| Cur | 136 N | Fatigue load limit, radial |
| nG | 28 500 1/min | Limiting speed |
| m | ≈0.018 kg | Net weight |

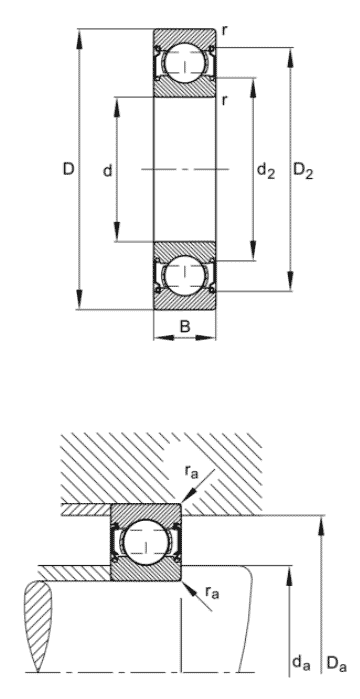

| Mounting dimensions | ||
| da | min. 12 mm | Minimum diameter shaft shoulder |
| Da | max. 24 mm | Maximum diameter of housing shoulder |
| ra | max. 0.3 mm | Maximum fillet radius |
| Dimensions | ||
| r min. | 0.3 mm | Minimum chamfer dimension |
| D2 | 23.1 mm | Caliber diameter outer ring |
| d1 | 13.7 mm | Caliber diameter inner ring |
| Calculation factors | ||
| f0 | 12.4 | Calculation factor |
6000-C-2Z, FAG, Deep groove ball bearing 60..-C-2Z, single row, Generation C, shields, steel sheet metal cage, Dimension: 10mm x 26mm x 8mm.
- 60: 60 series
- 00: bore diameter 10 mm
- -C: Generation C
- -2Z: Shield on both sides
