IKO Roller Followers is reliable follower bearings for cam mechanisms and linear motion guidance. IKO manufacturers a variety of durable roller followers that feature needle rollers embedded in a thick outer ring, specifically designed for smooth outer ring rotation. Crowned and cylindrical outer ring styles meet a diverse range of application needs.
IKO Roller Followers are bearings designed for outer ring rotation, in which needle rollers are incorporated in a thick walled outer ring. Both crowned and cylindrical outer rings are available. The outer rings run directly on mating cam guide surfaces, and the crowned outer ring is effective in relieving the edge load caused by mounting errors. The cylindrical outer ring, on the other hand, has a large contact area with the mating cam guide surface and is suitable for applications involving large loads or low cam guide surface hardness.
In IKO Roller Followers, there are two types of bearings available, the caged type and the full complement type. The caged type is useful for applications at high-speed rotation. The full complement type, on the other hand, is suitable for heavy-load applications at low-speed rotation or oscillating motions.
IKO Roller Followers include separable and non-separable types. Also, in addition to the open type, shield type and sealed type are available. The clearances between the side plates and outer ring of the shield type are narrow, and form labyrinths. In the sealed type, special synthetic rubber seals are assembled in these clearances, and they are effective in preventing penetration of dust and dirt.
These IKO bearings are available in a variety of types to suit almost any kind of application. They are widely used for cam mechanisms and for linear motions of conveying equipment.
IKO Roller Follower Types
IKO manufacturers a variety of durable roller followers that feature needle rollers embedded in a thick outer ring, specifically designed for smooth outer ring rotation. In IKO Roller Followers, types shown in table below.
| Type | With cage | Full complement type | |||||
|---|---|---|---|---|---|---|---|
| Crowned outer ring | Cylindrical outer ring | Crowned outer ring | Cylindrical outer ring | ||||
| Metric series | Separable Roller Followers RNAST, NAST | Without inner ring | Open type | RNAST … R | RNAST | - | - |
| With inner ring | Open type | NAST … R | NAST | - | - | ||
| Shield type | NAST … ZZ R | NAST … ZZ | - | - | |||
| Sealed type | NAST … ZZUUR | NAST … ZZUU | - | - | |||
| Non-separable Roller Followers NART | High carbon steel made | Shield type | NART … R | - | NART … V R | - | |
| Sealed type | NART … UU R | - | NART … VUUR | - | |||
| Stainless steel made | Shield type | NART … F R | - | - | - | ||
| Sealed type | NART … FUU R | - | - | - | |||
| C-Lube Roller Followers NART…/SG | Sealed type | NART … UUR/SG | - | - | - | ||
| Cylindrical Roller Followers NURT | Shield type | - | - | NURT … R | NURT | ||
| Inch series | Non-separable Roller Followers CRY | Shield type | - | - | CRY … V R | CRY … V | |
| Sealed type | - | - | CRY … VUUR | CRY … VUU | |||

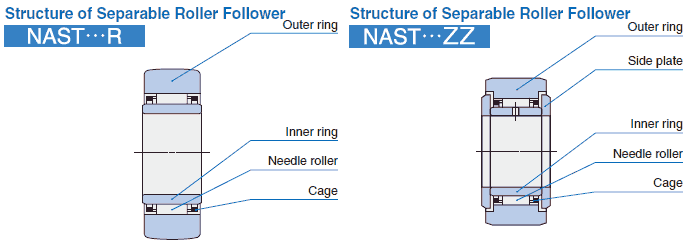

IKO Separable Roller Followers
These IKO bearings are assembled by combining an outer ring, inner ring and Needle Roller Cage, which can be separated from one another. Thus, handling is easy. Oil lubrication is also easy, making them suitable for high-speed rotations.
There are two types: type without inner ring RNAST and type with inner ring NAST. The type with inner ring includes open type, shield type, and sealed type.

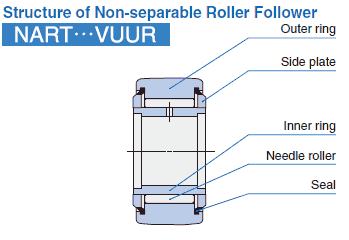

IKO Non-separable Roller Followers
These IKO non-separable type bearings have side plates fixed on both sides of the inner ring, and include the caged type and the full complement type. Both shield type and sealed type are available. As well, these bearings also offer a highly corrosion-resistant stainless steel specification, of which the products are suitable for applications where rust prevention oil is not preferred, such as in cleanroom environments.
Inch series Non-separable Roller Followers are full complement type bearings with black oxide surface treatment.
IKO C-Lube Roller Followers
These IKO Roller Followers are lubricated with C-Lube, an IKO original thermosetting solid-type lubricant which fills the inner space of the bearing. C-Lube is lubricant made of a lot of lubricant and fine particles of superhigh molecular polyolefin that are solidified by heat treatment. As the bearing rotates, the lubricant oozes out onto the raceway in proper quantities, maintaining the lubrication performance for a long period of time.

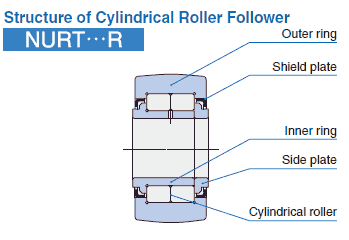

IKO Cylindrical Roller Followers
These IKO bearings are full complement type bearings incorporating double rows of full complement cylindrical rollers in the outer ring, and can withstand large radial loads.
Additionally, the outer ring is guided by the outer ring shoulder and the end face of cylindrical rollers to the axial direction.
