INA CSCF070-HLE bearings
Deep groove ball bearing, Thin section bearing CSCF, brass sheet metal cage
- Measurement system
- Inch
- Bore diameter
- 177.800 mm
- Outside diameter
- 215.900 mm
- Width
- 19.050 mm
- Cr
- 28500 N
- C0r
- 34000 N
- Limiting speed
- 2750 r/min
- Net weight
- 1.45 kg
- Number of rows
- 1
- Contact angle deg
- 0
- Sealing
- Without
- Cage
- Brass sheet metal
- Bore type
- Cylindrical
- Outer diameter type
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- PL1
- Lubricant in bearing
- Without
In stock
Technical specification for INA CSCF070-HLE
| Part Number | CSCF070-HLE | |
|---|---|---|
| Logistical code | HLE | |
| Sealing | Without | not sealed |
| Cage | YH | brass sheet metal |
| Tolerance class | PL1 | Class PL1, Normal |
| Lubricant | Without | Bearing not greased |
| Main Dimensions & Performance Data | ||
| d | 177.8 mm 7 in | Bore diameter |
| D | 215.9 mm 8.5 in | Outside diameter |
| B | 19.05 mm 0.75 in | Width |
| Cr | 28500 N | Basic dynamic load rating, radial |
| C0r | 34000 N | Basic static load rating, radial |
| nG | 2750 1/min | Limiting speed |
| m | ≈ 1.45 kg | Weight |

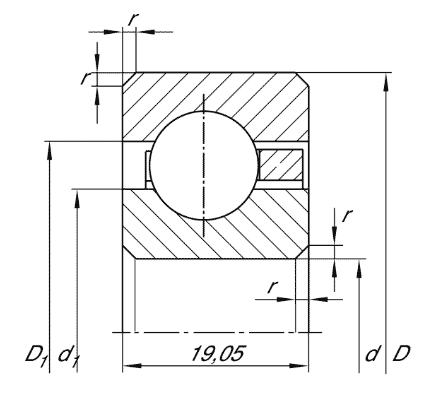

| Dimensions | ||
| rmin | 2 mm | Minimum chamfer dimension |
| d1 | 191.9 mm | Shoulder diameter inner ring |
| D1 | 201.8 mm | Shoulder diameter outer ring |
INA CSCF070-HLE, Deep groove ball bearing, Thin section bearing CSCF, brass sheet metal cage. INA CSCF070-HLE have very small cross-sections relative to their diameters. This allows designs with smaller design envelope and lower mass, while achieving high rigidity and running accuracy.
INA CSCF070-HLE deep groove ball bearing can support axial loads in both directions as well as radial loads; under axial load, a contact angle (α > 0°)is adopted.
