SKF BS2-2213-2RS/VT143 bearings
BS2-2213-2RS/VT143 Spherical roller bearings, Popular item, SKF Explorer
- Measurement system
- Metric
- Bore diameter
- 65.000 mm
- Outside diameter
- 120.000 mm
- Width
- 38.000 mm
- Cr
- 198000 N
- C0r
- 216000 N
- Limiting speed
- 2500 r/min
- Net weight
- 1.6 kg
- Number of rows
- 2
- Sealing
- Contact seal on both sides
- Cage
- Steel sheet metal
- Bore type
- Cylindrical
- Outer diameter type
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Lubricant in bearing
- Grease
- Relubrication feature
- Hole and groove
In stock
Technical specification for SKF BS2-2213-2RS/VT143
| Part Number | BS2-2213-2RS/VT143 | |
|---|---|---|
| Type | Spherical roller bearings Popular item SKF Explorer |
|
| Bore type | Cylindrical | |
| Mass | 1.6 kg | |

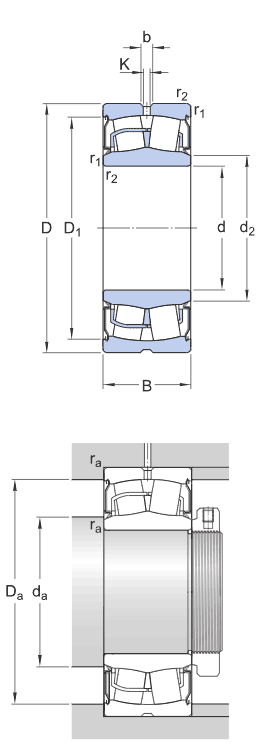

| Dimensions | ||
| d | 65.0 mm | Bore diameter |
| D | 120.0 mm | Outside diameter |
| B | 38.0 mm | Width |
| d2 | 76.5 mm | Shoulder diameter of inner ring |
| D1 | 110.0 mm | Shoulder/recess diameter of outer ring |
| b | 6.0 mm | Width of lubrication groove |
| K | 3.0 mm | Diameter of lubrication hole |
| r1,2 | min. 1.5 mm | Chamfer dimension |
| Abutment Dimensions | ||
| da | min. 74.0 mm | Diameter of shaft abutment |
| da | max. 76.5 mm | Diameter of shaft abutment |
| Da | max. 111.0 mm | Diameter of housing abutment |
| ra | max. 1.5 mm | Radius of fillet |
| Calculation Data | ||
| C | 198.0 kN | Basic dynamic load rating |
| C0 | 216.0 kN | Basic static load rating |
| Pu | 23.6 kN | Fatigue load limit |
| 2500.0 r/min | Limiting speed | |
| e | 0.24 | Limiting value |
| Y1 | 2.8 | Axial load factor |
| Y2 | 4.2 | Axial load factor |
| Y0 | 2.8 | Axial load factor |
SKF BS2-2213-2RS/VT143, Spherical roller bearing, Dimensions: 65.0x120.0x38.0 mm
